Textures and Texture Sources

Quetoo supports all popular image formats for world textures: TGA, PNG, JPG, and even Quake 2's WAL format. All of the textures distributed with Quetoo may be reused in other levels, provided you pass along whatever documentation comes with them. Please avoid creating levels with textures that may not be freely distributed.

Here are some sites which provide excellent quality, legally distributable textures:

• TRaK
• SimonOC.com
• Evil Lair
• Lunaran's Textures
• RAA Texture Pack
• PhilipK
• The Quake Revitalization Project

Normalmaps and Bump Mapping

Quetoo's bump mapping (per-pixel lighting) uses a combination of deluxe mapping, dot3-bump mapping, and parallax mapping. This technique requires that you provide normalmap images for your world textures. Generally speaking, you'll want to provide a normalmap image for every visible world texture appearing in your level, except for liquids like water and lava. Materials textures like animations and pulses do not require normalmaps.

The standard convention is to name your normalmaps with the _nm or _norm suffix. For example, if your texture is named torn/floor1, the corresponding normalmap image should be named torn/floor1_nm or torn/floor1_norm. For parallax mapping, include a heightmap in the alpha channel of your normalmap textures, or provide an additional heightmap image with the suffix _h, e.g. torn/floor1_h.

Creating proper normalmaps from diffuse textures can be difficult and tedious. We recommend that you elect to use textures specifically designed for this rendering technique, that should come with properly encoded normalmaps. Should you choose a texture set that does not, you might find this tutorial for creating normalmaps useful. There are several free tools available for creating and working with normalmaps:

• NVidia Photoshop Plugins
• GIMP Normalmap Plugin
• CrazyBump
• xNormal

The best way to create normalmaps is from 3D models:

• Baking Normalmaps in Blender

Additionally, you should tune each texture's bump mapping properties via the materials system to achieve the best looking result.

Surface and Contents Flags

Several surface flags are available in Quetoo that were not previously supported by Quake 2.

SURF_NO_DRAW

Comparable to Quake III Arena's caulk feature; disables rendering of any face to which it is applied. Useful on backs of beams, bottoms of crates, etc.. The BSP compiler automatically assigns this flag to any surfaces textured with common/caulk.

SURF_TRANS33 + SURF_TRANS66

Combining the two legacy alpha blend flags causes the renderer to use the texture's alpha channel for blending. This is useful for light volumes and decals.

SURF_ALPHATEST

Enables OpenGL alpha-test on surfaces to which it is applied, allowing for grates, foliage, railings, fences, and other textures with "holes".

SURF_PHONG

Marks surfaces for Phong Interpolation (Phong Shading) during the BSP compile process. This should only be used on curved or organic geometry such as pipes, pillars, and terrain.

The Worldspawn Entity

The worldspawn entity is the core of the .map file structure. All world brushes appear within the context of the worldspawn entity. Quetoo adds several new properties to the worldspawn entity which impact everything from atmospheric weather to gameplay modes to lightmap resolution.

Runtime Variables

The following worldspawn keys are resolved at runtime, and may be overridden at the server operator's discretion via maps.lst.

message

The map title string, e.g. ^2S^7tress ^2F^7ractures by ^2J^7ester. Color escape sequences are supported. Avoid newline characters.

sky

The skybox prefix, e.g. unit1_, thundersky_, etc..

weather

Atmospheric weather type for the level. Valid values are none, rain, snow. You may also append fog, and optionally a fog color specified as rgb floating point numbers, e.g. rain fog 1.0 0.9 0.8. A fourth fog component will modify the dog density, e.g. rain fog 1.0 0.9 0.8 0.7.

gravity

The world gravity constant for the level, defaults to 800.

gameplay

The default gameplay type for the level. One of deathmatch, instagib, or rocket arena.

teams

Controls teams play. 0 is off, 1 is on, and 2 tries to enforce balanced teams.

ctf

Controls capture the flag. 0 is off, 1 is on, and 2 tries to enforce balanced teams.

match

Controls match mode, where players must ready-up for a match to begin. 0 is off, 1 is on.

frag_limit

Specifies maximum score a player may reach before an intermission.

round_limit

Specifies the maximum rounds played before an intermission. Usually used in conjunction with rocket arena gameplay.

capture_limit

Specifies the maximum captures to transpire before an intermission. Only useful for ctf levels.

time_limit

Specifies maximum time, in minutes, that will transpire before an intermission.

give

A comma-delimited items list which each player will receive upon respawn, e.g. rocket launcher, super shotgun.

Compile-time Variables

The following worldspawn keys are resolved at compile time, and must be set before BSP compilation.

ambient_light

Specifies ambient light, or the minimum global lighting value for all light samples, as an rgb color, e.g. 0.07 0.06 0.06. A small ambient factor is recommended for most levels.

brightness

Controls light scale. This is used to uniformly brighten or darken your level. 1.0 is default, all positive floating point values are valid.

contrast

Controls light contrast. This can be used to create darker dark areas and lighter light areas. The default value is 1.0. Values significantly higher than 1.0 are not recommended.

lightmap_scale

Controls lightmap resolution, which is relative to texture size. Default is .0625 (1/16). A value of 0.125 will produce sharper lightmaps, but will lengthen your static lighting compile times and increase the size of your BSP. For 0.25 scale diffuse textures, the default lightmap_scale is recommended.

saturation

Controls light saturation, or color influence. This can be used to make a level look more colorful, or more pale. The default value is 1.0. Values from 0.5 to 3.0 are most useful.

subdivide

Controls maximum surface size for the bsp stage of the compile. Generally, the default value 1024 is recommended. Lower values may reduce artifacts, while higher values may reduce r_speeds.

sun_angles

Controls sunlight direction, specified as pitch and yaw in degrees, e.g. -80 220.

sun_color

Controls sunlight color, specified as rgb floating point values, e.g. 1.0 0.9 0.8.

sun_light

Controls sunlight intensity. Values from 0 to 255 are valid, 40 to 150 typically produce best looking results.

The Emit Entity

The misc_emit entity is a client-sided entity type used to enrich your levels with non-vital information such as static models, particle torches, flickering lights, and ambient sounds. This entity is highly customizable based on several key-value pairs.

Similar to Quake 2's spawnflags key-value pair, a set of flags exists for enabling certain misc_emit features. Whenever possible, these are automatically resolved by the game engine based on the key-value pairs you have set on the entity. Still, you will sometimes need to add these values to the flags key-value pair manually.

    EMIT_LIGHT      1
    EMIT_SPARKS     2
    EMIT_STEAM      4
    EMIT_FLAME      8
    EMIT_CORONA     16
    EMIT_SOUND      32
    EMIT_MODEL      64

flags

A bit-masked integer value; see above. When possible, flags are automatically resolved by the game engine based on the presence of other key-value pairs described below. However, some flag values must manually be set.

angles

3 positive floating point values in degrees, these provide directional information. Applicable to EMIT_SPARKS EMIT_MODEL.

color

3 positive floating point values, these provide rgb color information. Applicable to EMIT_LIGHT EMIT_CORONA.

count

A positive integer value which provides particle count information. Applicable to EMIT_SPARKS. Default is 12.

drift

A positive floating point value which provides some variance to event frequency. Values greater than 0.0 and smaller than 5.0 are most useful. Applicable to EMIT_LIGHT EMIT_SPARKS EMIT_STEAM EMIT_FLAME EMIT_SOUND. Default is 0.01.

hz

A positive floating point value which provides an event frequency baseline. Applicable to EMIT_LIGHT EMIT_SPARKS EMIT_STEAM EMIT_FLAME EMIT_SOUND. Use the drift key to add variance. Sane defaults are used where possible.

model

The game path of a model file, e.g. outpost/tree. The model must be a static mesh (i.e. not animated). It will be positioned according to the angles key. Applicable only to EMIT_MODEL, which is set when this key is present.

radius

A single floating point value which provides radius information. Applicable to EMIT_LIGHT EMIT_CORONA EMIT_FLAME. Defaults are 1.5, 12.0 and 1.0 respectively.

sound

The game path of a sound sample, e.g. aghast/drip. When no hz value is provided to emits which have a sound key, they are treated as looped ambient sounds. Applicable only to EMIT_SOUND, which is set when this key is present.

velocity

3 floating point values in units, these provide directional velocity information. Applicable to EMIT_STEAM

attenuation

Determines the size of the area in which a given sound is heard. Default is 1. Lower values will increase the range of the sound, whereas higher values will make the sound more localized. Setting this to -1 will make a sound play globally. Applicable to EMIT_SOUND

Examples

A torch flame, automatically accompanied by a crackling fire sound effect:

{
    // entity 1
    "classname" "misc_emit"
    "origin" "-24 512 256"
    "flags" "8"
 }

An ambient drip:

{
    // entity 2
    "classname" "misc_emit"
    "origin" "786 1284 16"
    "sound" "aghast/drip"
}

A flickering light with sparks:

{
    // entity 3
    "classname" "misc_emit"
    "origin" "-224 640 -64"
    "angles" "0 270 0"
    "flags" "3"
    "color" "1.0 0.9 0.5"
    "radius" "1.25"
    "count" "20"
    "hz" "0.25"
    "drift" "0.5"
}

A steam emitter, pointing downward and slightly north-east, and automatically accompanied by a hissing sound effect:

{
    // entity 4
    "classname" "misc_emit"
    "origin" "216 -48 512"
    "flags" "4"
    "velocity" "10 10 -40"
}

A static mesh tree:

{
    // entity 5
    "classname" "misc_emit"
    "origin" "-1024 -42 168"
    "model" "outpost/tree"
    "angles" "4 270 0"
}

Legacy Entities

The vast majority of Quetoo entities are carryovers from Quake 2. You'll notice, however, that several items have been removed, and a few new ones are available. Also, some old items have new spawnflags to alter their behavior. They are as follows:

item_*

All items in Quetoo (ammo, armor, weapons, ..) can be made to float in space, rather than drop to the floor upon spawning (which is the default behavior in Quake 2). Set spawnflags to 4 on any item to enable this behavior.

trigger_push

This is the accelerator pad entity so common in Quake 3 Arena, and also fairly popular in later Quake 2 levels. Setting spawnflags to 2 for these entities will make them emit a "rising rings" effect to help them stand out.

weapon_lightning

This is the lighting gun weapon, which Quetoo adds as a nod to classic Quake.

Lighting

Lighting levels for Quetoo is very simple; easier than lighting them for Quake II. The BSP Compiler's lighting phase performs only direct lighting, without radiosity, but also calculates light direction values for per-pixel lighting. The following guidelines generally produce the best looking levels and the shortest BSP compile times:

• Use a small ambient_light value in your worldspawn entity. Values less than 0.15 0.15 0.15 are usually appropriate. Tune the value to reflect your sky environment color.

• Use sun_angles, sun_color, and sun_light for levels that have sky surfaces. Even if you have a night sky, a small amount of sun_light gives you ambiance and atmosphere for free.

• Use light-emitting surfaces (SURF_LIGHT) sparingly. Point lights are much more efficient for the BSP compiler to process, and will generally produce equal or better looking results. A proper use case for SURF_LIGHT is a long, thin strip of contiguous light sources.

• Place lights only where you have actual light sources. Don't drop point lights in "mid air" where there is no light source. You're better off placing point lights as close to their actual light sources as possible, and making them very strong if you need to cast light on a floor that is far away.

• Keep it simple and realistic! Fewer, stronger light sources will generally look much better than numerous, weak sources. Avoid adding more than one point light for each light source. Keep the point light close to the light source brush.

The BSP Compiler

Quetoo provides its own cross-platform BSP compilation tool called quemap. The compiler is based on the original Quake 2 tools, but in addition offers the following:

• Support for large surfaces.
• High-color texture support during light stage.
• Performance optimizations, such as not subdividing or lighting sky surfaces.
• Configurable sunlight, ambient, brightness, saturation, contrast, and lightmap resolution via worldspawn entity.
• Phong Interpolation (Phong Shading) for simulating curved or organic surfaces.
• Integrated zip authoring for generating standard distribution pk3 files for your levels.
• Integrated materials file generation for getting started with the materials system.
• Cross-platform multithreading.

In addition to these things, the quemap source code is Valgrind clean. The stock tools are riddled with dangerous instructions and memory leaks.

Invoking the compiler is simple and straightforward. You should consider running it via a command prompt or shell rather than through GtkRadiant's build menu.

Standard full compile:

quemap -bsp -vis -light maps/my.map

Fast vis, extra light, two threads:

quemap -t 2 -bsp -vis -fast -light -extra maps/my.map

Materials file generation:

quemap -mat maps/my.map

Pakfile generation (produces map-my.pk3):

quemap -zip maps/my.map

Only entities, no light or vis:

quemap -bsp -onlyents maps/my.map

The Materials System

The materials system provides a flexible framework to enhance your levels with animations, light flares, environment maps, terrain blending, and other effects. If you are familiar with Quake 3 Arena's "shaders" system, you'll be right at home with materials. If you're just curious about the basics, and using the in-game materials editor, then this video will get you started:

A material is a set of directives and parameters for an individual world texture. Each texture in your level can have zero or one material definition. Materials are defined in a plain text file called materials/mymap.mat, where mymap is the name of your .bsp file. The BSP compiler can generate a default materials file for your level to get you started: q2wmap -mat maps/my.map

General Structure

Materials are comprised of a material definition, and then zero or more layers called stages. Each stage can describe one or more effect, and each effect is blended with the result of the prior stages. The basic structure of a materials file is:

{
    # Material definition
    material path/to/texture1
    parameters
    {
        # Stage definition
        texture path/to/texture2
        parameters
    }
    ...
}

Material Definition

The material definition specifies the texture name and per-pixel lighting parameters.

normalmap path/to/normalmap

Normalmap overriding is used to apply common normalmap textures to several materials. By default, the engine tries ${texture}_nm and ${texture}_norm. Typically, this directive is omitted. However, if you have several diffuse textures that differ only in color, you can save some texture memory by specifying the same normalmap map for each of them. See normalmaps and bump mapping

glossmap path/to/glossmap

Glossmap overriding is used to apply common glossmap textures to several materials. By default, the engine tries ${texture}_s and ${texture}_gloss. Typically, this directive is omitted. However, if you have several diffuse textures that differ only in color, you can save some texture memory by specifying the same glossmap for each of them. See normalmaps and bump mapping

bump b

Bump amplification is used to tune bump mapping effects. Higher values increase the "bumpiness" of surfaces. The b parameter is required, and must be a positive floating point value, or 0.0. The default value is 1.0.

parallax p

Parallax amplification is used to tune the depth of bump mapped surfaces. Using values higher than 1.0 requires high-quality normalmaps, with properly encoded height values. The p parameter is required, and must be a positive floating point value, or 0.0. The default value is 1.0.

hardness h

Hardness is a multiplier for the specular component of bump mapped surfaces, and can be used to amplify or mute a material's reflectiveness. Organic materials benefit from lower values, while polished metals and glass benefit from higher ones. The h parameter is required, and must be a positive floating point value, or 0.0. The default value is 1.0.

specular s

Specular amplification is used to tune the specularity of bump mapped surfaces. The s parameter is required, and must be a positive floating point value, or 0.0. The default value is 1.0.

It is a best practice to define all material parameters for your opaque world surfaces, as they are eligible for per-pixel lighting. Quetoo provides safe defaults when you omit these parameters, but tuning them will often benefit the appearance of your level.

{
    material evil6/stone_floor
    bump 3.0
    hardness 1.5
    parallax 1.2
    specular 3.0
}

Note that blended materials such as glass or foliage do not support per-pixel lighting, and so you may safely omit the material parameters for them.

{
    material office/glass
    {
        envmap office/glass
    }
}

Stage Definition

There are four types of stages: texture envmap lightmap flare. A stage must start with a type declaration, e.g. texture lunaran/pad1_fx, envmap 0, lightmap, flare 1, etc..

Texture Stages

Texture stages are the most versatile and complex type, and must always declare a valid texture image, e.g. texture lunaran/pad1_fx. The following listing describes the texture stage directives.

anim frames hz

Frame-based animations are used to animate surfaces like computer screens. The stage texture name should end in 1, e.g. lunaran/computer1, with subsequent frames following in sequence. The frames parameter specifies the number of textures which comprise the animation. The hz parameter specifies the frequency of the effect. Both are required, and must be a positive integer and positive floating point number respectively.

blend src dest

The blend directive exposes OpenGL's GL_BLEND function. This is used for textures which lack an alpha channel, where additive blending is typically required. The src and dest parameters are GL constants, e.g. blend GL_ONE GL_SRC_ALPHA. The default blend function is GL_ONE GL_ONE_MINUS_SRC_ALPHA.

color r g b

The color directive is used to influence the stage's default color. This directive is often used in conjunction with other directives such as pulse or stretch. The parameters r g b are each required, and must each be floating point numbers between 0.0 and 1.0.

pulse hz

Pulses are used to animate surfaces like jump pads or light fixtures. The stage texture is interpolated over the base material using a sin function. The hz parameter specifies the frequency of the effect. It is required and must be a positive floating point number.

rotate hz

Rotation directives are used for fan blades, Yin-Yangs, and other surfaces which should appear to rotate. The hz parameter specifies the speed of the rotation. It is required, and must be a positive floating point number.

scale.s s, scale.t t

The scale directives are used to scale texture stages, and can be used when a stage texture is of a different resolution than the base material texture. S and T are the two texture coordinate axis. Each directive takes exactly one required parameter, which must be a positive floating point number.

scroll.s s, scroll.t t

The scroll directives are used to slide texture stages across the underlying base material. This is used for computer screen redraw lines, layered water surfaces, and trim lighting. S and T are the two texture coordinate axis. Each directive takes exactly one required parameter, which must be a floating point number.

stretch amp hz

Stretch directives are used to create continuous expanding and contracting effects. The amp parameter specifies the scale of the stretch, while hz specifies the frequency. Both are required, and must be positive floating point numbers.

terrain ceil floor

Terrain directives are used to achieve simple height-based terrain blending. The ceil and floor parameters specify the highest and lowest Z-axis coordinates where blending will occur. At Z coordinates less than floor, the base material texture will appear; at Z coordinates greater than ceil, the stage texture will appear. Linear interpolation is used to blend the two textures at Z coordinates between ceil and floor. Both parameters are required, and must be floating point numbers.

dirtmap intensity

Dirtmap directives are used to add randomized, blended artifacts to primary or terrain surfaces. This can effectively create unique looking surfaces, as generally no two polygons will receive the same set of artifacts. The intensity parameter specifies the overall amplification of the effect. It is required, and must be between 0.0 and 1.0.

Both terrain and dirtmap stages support per-pixel lighting, thus it is possible to create bumpmapped terrain. To do this, declare your terrain stage texture with a material definition prior to the base material.

{
    material organics/grass
    ...
}
{
    material organics/dirt
    ...
    {
         texture organics/grass
         terrain 32.0 128.0
    }
}

Envmap Stages

Environment map stages are used to simulate reflections on metal, water, glass, etc. For convenience, they may be declared with numeric values to take advantage of several built-in effect textures, e.g. envmap 0. Alternatively, a unique texture can also be provided, e.g. envmap envmaps/my_envmap.

Environment map stages do not currently support any unique directives, but do support blend color scroll.s scroll.t, described above. If a color is not provided to the stage definition, Quetoo automatically uses the surface's average static lighting color to shade the environment map.

{
    material office/glass
    {
        envmap office/glass_envmap
        blend GL_SRC_ALPHA GL_ONE
        color 0.9 0.9 1.0
    }
}

Lightmap Stages

Lightmap stages are used to blend in statically computed lighting information. This is typically applied as the last drawn stage, and is useful for shading opaque or mostly opaque stages such as animations. Lightmap stages are declared by simply beginning the stage with the lightmap type name. Lightmap stages do not support any unique directives.

{
    material lunaran/computer0
    ...
    {
        anim 4 0.3
    }
    {
        lightmap
    }
}

Flare Stages

Flare stages are used to add flares (coronas) to surfaces such as light fixtures. For convenience, flare stages may reference numeric values to take advantage of several built-in effect textures, e.g. flare 1. Alternatively, a unique texture can also be provided, e.g. flare flares/my_flare.

Flare stages do not currently support any unique directives, but do support color scale.s scale.t described above. If a color is not provided to the stage definition, Quetoo automatically uses the surface's average static lighting color to shade the flare. Either of the scale.s or scale.t directives can be used to influence the size of the flare produced by this stage.

{
    material tech/small_light
    ...
    {
        flare tech/flare1
        scale.s 1.5
    }
}

More Examples

The best way to learn the materials system is to study some of the materials files that come with Quetoo. These are conveniently available in the game data repository.

Source Code and Dependencies

The Quetoo source code is available via Github. Checkout the source code to a directory you you wish to setup as your working copy:

All platforms

mkdir ~/Coding
cd ~/Coding
git clone https://github.com/jdolan/quetoo.git
git clone https://github.com/jdolan/quetoo-data.git --depth 1

Objectively & ObjectivelyMVC

Quetoo's user interface is built using Objectively and ObjectivelyMVC. These are relatively new libraries, and packaging for your operating system is not likely available. Unless otherwise written below, you should install these libraries from source by following the instructions on their respective Github project pages.

Windows

All dependencies, including Objectively and ObjectivelyMVC, are included in the packages or alongside the compiling instructions on the next page.

GNU/Linux

Ensure you have the following dependencies:

gcc, autoconf, automake, glib2, libcurl, libsdl2, libsdl2-image, libsdl2-mixer, libtool, Objectively, ObjectivelyMVC, physfs

Ubuntu 12.04:

sudo apt-get install autoconf automake libtool libcurl4-openssl-dev \
    libphysfs-dev libsdl2-image-dev libsdl2-mixer-dev check

Fedora 18:

sudo yum -y groupinstall development
sudo yum -y install libcurl-devel libjpeg-devel physfs-devel \
    SDL2-devel SDL2_image-devel SDL2_mixer-devel zlib-devel glib2-devel check

Mac OS X

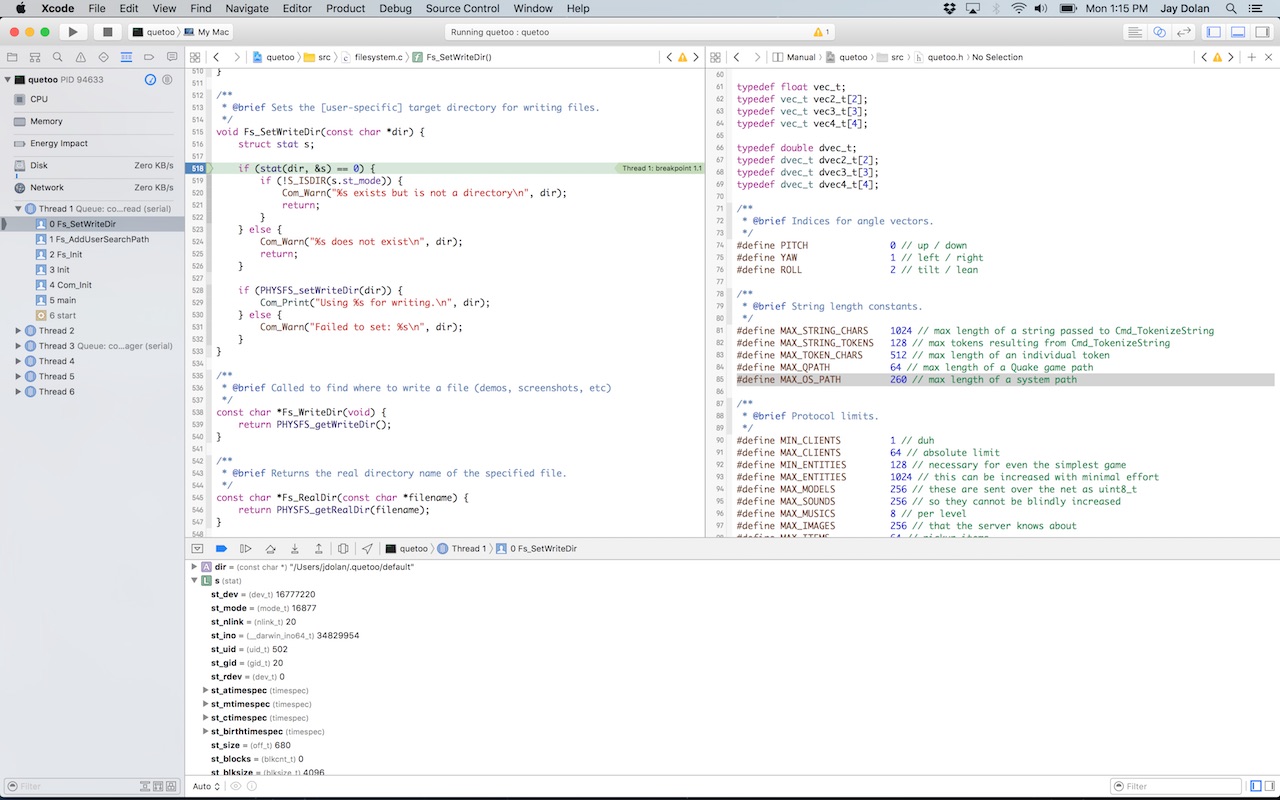

Install MacPorts by downloading the latest .dmg file from the MacPorts site. Prerequisites for MacPorts include XCode and X11, and you should have both before proceeding.

Install Autotools, glib2, libsdl2_image, libsdl2_mixer and physfs through ports:

sudo port -d selfupdate
sudo port install autoconf automake glib2 libtool libsdl2_image libsdl2_mixer physfs pkgconfig check

Compiling

With the dependencies installed, compiling Quetoo is very easy.

Windows

Create a blank folder, and inside that folder, checkout Objectively, ObjectivelyMVC and quetoo (optionally quetoo-data) into their own folders, with their respective names. The following batch file, ran inside an empty folder, will do this (leave the last one out if you don't want the data):

git clone https://github.com/jdolan/Objectively.git
git clone https://github.com/jdolan/ObjectivelyMVC.git
git clone https://github.com/jdolan/quetoo.git
git clone https://github.com/jdolan/quetoo-data.git --depth 1

After that, head to quetoo\Quetoo.vs15 and run SET_ENV.ps1. You will be prompted to enter a folder that you will store your output binaries into, such as C:\quetoo\. This is where binaries will be automatically copied to on builds, and where debuggers will be by default set up to load from.

If you are checking out the data too, you should also run MAKE_DATA_JUNCTION.ps1 which will automatically set up a junction in c:\quetoo\share\default to the quetoo-data\target\ folder.

Open quetoo_all.sln, pick your Configuration/Platform, and build!

Unix/Mac/Mingw

If you've compiled anything that uses Autotools, this will look familiar to you:

autoreconf -i
./configure [--with-tests] [--without-tools]
make -j5
sudo make install

If you also checked out the game data from Git, you may "install" it by simply creating a symlink to it:

ln -s ~/Coding/quetoo-data/target /usr/local/share/quetoo

And finally, you may run the game:

quetoo

Eclipse & Xcode

We recommend using Eclipse or Xcode for hacking on Quetoo. Project files and formatting rules for C source code are maintained in Git.

To import your working copy into Eclipse, select Import Existing Projects into Workspace from the File and Import menus, and browse to the trunk folder. Similarly, you can import the Quetoo data working copy into Eclipse as well for convenient editing of material files and other scripts.

You may also wish to install the EGit team provider for Git integration, and the glshaders plugin for GLSL syntax highlighting.

Running and debugging Quetoo through Eclipse is possible and works quite well.

Debugging

For debugging Quetoo , launch the game in gdb either at the command line, or through Eclipse. Be sure that you start the game in windowed mode so that you can interact with gdb when you reach a break-point.

If developing on OS X, open quetoo.xcworkspace in Xcode, and run the game through Xcode. Xcode's lldb debugger works wonderfully with Quetoo. OS X will correctly make Xcode the active window when breakpoints are hit, so you can debug the game while running it in fullscreen mode.
